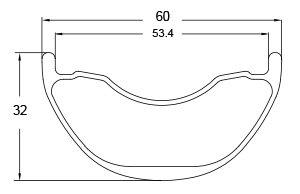

The LF760 carbon fiber bike rim, size 27.5" 60mm width, was designed in 2019. It's a higher size than 26" for taller riders. The design of double-wall and flat surface is derived from the early aluminum alloy fat rim, which has been a classic design of fat rims. The flat surface design of the spoke holes wall allows the spoke holes to be drilled with an offset of 2.5mm, which is beneficial to the overall stability of the wheelset. The profile drawing is shown below.
This model of rim could be mounted tire at size 3.0~4.0". While, to adapt to different cycling experience, we also provide 26" fat bike rims, like 65mm, 80mm and 100mm.
| Basic | |
| Product Code | LF760 |
| Material | Full Carbon Fibers (Toray T700) |
| Type | Clincher (Hookless) |
| Warranty Period | 2 Years |
| Details | |
| Size | 27.5" (BSD 584mm) |
| External Width | 60mm |
| Internal Width | 53.4mm |
| Depth | 32mm |
| Weight | 540g |
| ERD (Effective Rim Diameter) | 528mm |
| Spoke Holes Angle | ± 5° |
| Spoke Holes Diameter | 4.5mm (Normal) |
| Spoke Holes Count | 32 |
| Spoke Holes Offset | 2.5mm |
| Valve Hole Diameter | 6.5mm (Presta) |
| Tubeless Compatible | Yes |
| Carbon Weave Availability | UD / 3K / 12K |
| Finish Availability | Matte / Glossy |
| Recommendation | |
| Spoke Tension | 100 ~ 130Kgf ( ≤150Kgf ) |
| Tire Size | 3.0"~4.0'' |
| Tire Pressure | ≤25psi |
| Carrying Capacity (One Wheel) | 130Kg |
| Application | |
| Application | Trail | Enduro | Dirt | Snow | Sand | Mud |
