• [LF665] Double Wall 26" 65mm Fat Bike Carbon Rim

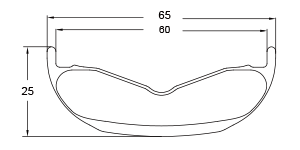

The LF665 carbon fiber bike rim, size 26" 65mm width, was designed in 2015 when carbon fiber fatbike wheels were just emerging. The design of double-wall and flat surface is derived from the early aluminum alloy fat rim, which has been a classic design of fat rims. The flat surface design of the spoke holes wall allows the spoke holes to be drilled with an offset of 9mm, which is beneficial to the overall stability of the wheelset. The profile drawing is shown below.


This model of rim could be mounted tire at size 3.2~4.0". While, to adapt to different cycling experience, we also provide wider fat bike rims, like 80mm and 100mm

Basic
Product Code LF665
Material Full Carbon Fibers (Toray T700)
Type Clincher (Hookless)
Warranty Period 2 Years
Details
Size 26" (BSD 559mm)
External Width 65mm
Internal Width 60mm
Depth 25mm
Weight 600g
ERD (Effective Rim Diameter) 528mm
Spoke Holes Angle ± 5°
Spoke Holes Diameter 4.5mm (Normal)
Spoke Holes Count 32
Spoke Holes Offset 9mm
Valve Hole Diameter 6.5mm (Presta)
Tubeless Compatible Yes
Carbon Weave Availability UD / 3K / 12K
Finish Availability Matte / Glossy
Recommendation
Spoke Tension 100 ~ 130Kgf ( ≤150Kgf )
Tire Size 3.2"~4.0''
Tire Pressure ≤25psi
Carrying Capacity (One Wheel) 130Kg
Application
Application Trail | Enduro | Dirt | Snow | Sand | Mud

Write a review

Note: HTML is not translated!
    Bad           Good

[LF665] Double Wall 26" 65mm Fat Bike Carbon Rim

  • Product Code: LF665
  • Availability: In Stock
  • $239.00


  • 2 or more $227.00
  • 10 or more $191.00
  • 20 or more $167.00
  • 40 or more $155.00

Available Options


Tags: Fat Bike Carbon Rim
