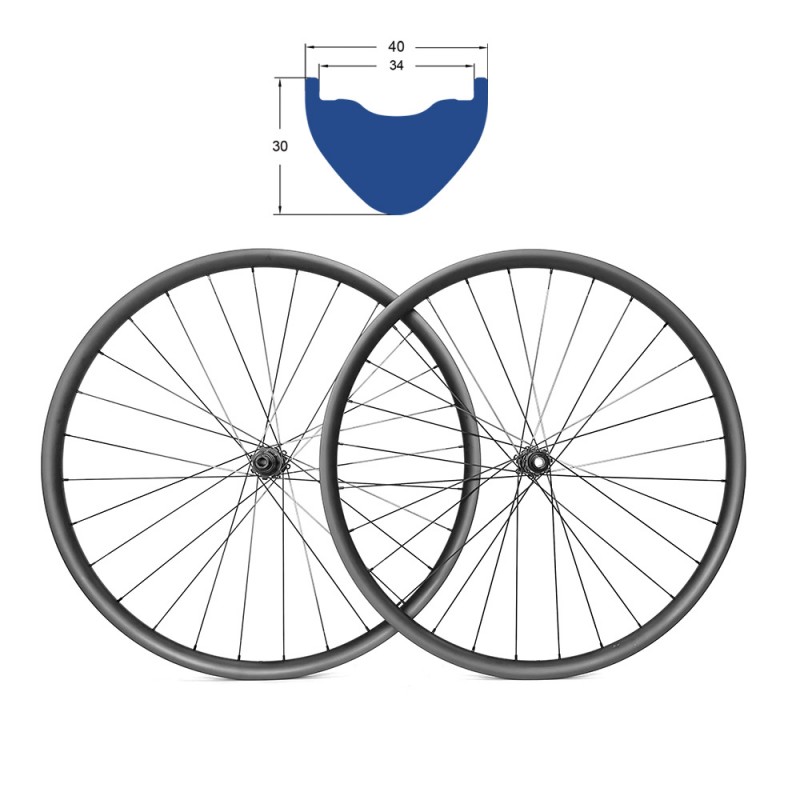

LBW aims to provide entry-level carbon fiber bicycle products with low price and quality assurance. This carbon fiber mountain wheelset LM940LS002B is only 1690g for all mountain riding, 1750g for enduro, equipped with LM940 rims and our own brand hubs of model LS001B in size boost 15x110/12x148mm. It is equipped with Plain Gauge bladed spokes originally, but you could also upgrade the spokes to Pillar PA 1423 aero spokes or Pillar PSR X-Tra 1420 spokes.
More information about the carbon rims on this wheelset: LM930X
More information about the hubs on this wheelset: LS002B
| Basic | |
| Product Code | LM940LS001B |
| Rim Type | Hookless / Straight-Sidewall |
| Warranty Period | 1 Year |
| Details | |
| Wheelset Weight | 1690g AM (795g front + 895g rear) 1750g EN (825g front + 925g rear) |
| Rims | LM940 Carbon Fiber, UD Matte 32/32H, 40mm External, 34mm Internal, Symmetric |
| Hubs LBW | LBW LS001B 15x110 front 12x148mm rear, 32/32H, J-Bend, 6-Bolt, Ratchet 36T, Black |
| Spokes | Plain (Black, Bladed) / Pillar Aero PA 1423 (Black) / Pillar Aero PSR X-Tra 1420 (Black) |
| Nipples | Alloy (Black) |
| ERD (Effective Rim Diameter) | 581mm |
| Spoke Holes Diameter | 4.5mm |
| Valve Hole Diameter | 6.5mm (Presta) |
| Hub Body | Shimano 9-11S / Sram XD / Micro Spline 12S |
| Tubeless Compatible | Yes |
| Includings | Complete Wheelset + Spare Spoke + Spare Nipple |
| Recommendation | |
| Spoke Tension | 100 ~ 120Kgf ( ≤130Kgf ) |
| Tire Size | 2.25" ~ 3.0" |
| Tire Pressure | ≤55psi |
| Carrying Capacity (One Wheel) | 130Kg |
| Application | |
| Application | XC / Marathon / Trail / All Mountain (AM) / Enduro |
LM940LS001B Carbon MTB AM / Enduro Wheelset | 29" 40mm 110/148mm
- Product Code: LM940LS001B
-
USD 479
-
- 5 or more USD 322
- 10 or more USD 312
- 20 or more USD 292
