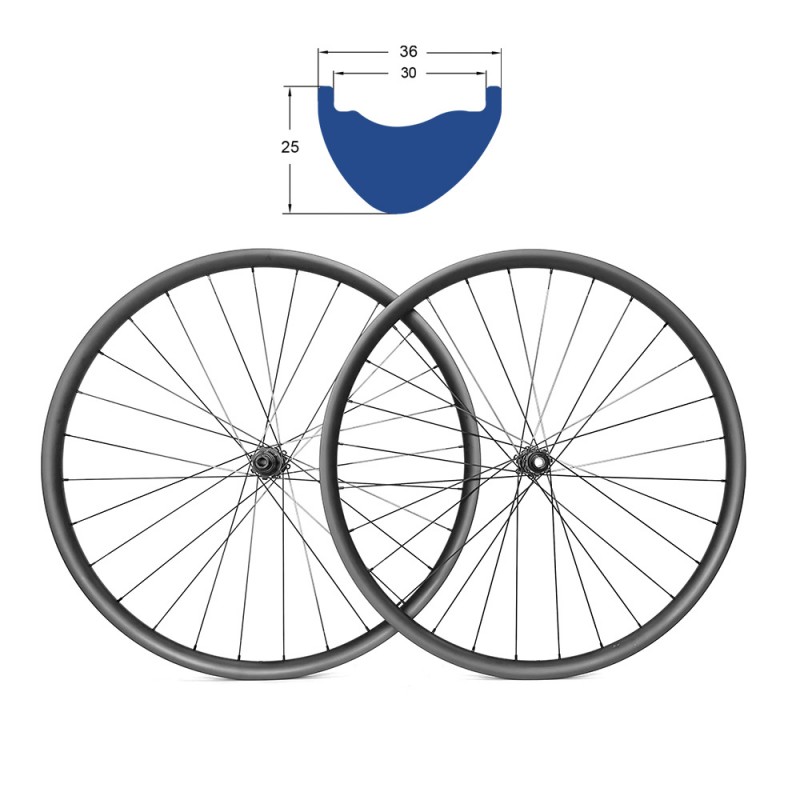

LBW aims to provide entry-level carbon fiber bicycle products with low price and quality assurance. This carbon fiber mountain wheelset LM936AXLS002B is only 1460g for cross country riding, equipped with LM936AX rims and our own brand hubs of model LS002B in size boost 15x110/12x148mm. It is equipped with Plain Gauge bladed spokes originally, but you could also upgrade the spokes to Pillar PA 1423 aero spokes or Pillar PSR X-Tra 1420 spokes.
More information about the carbon rims on this wheelset: LM930X
More information about the hubs on this wheelset: LS002B
| Basic | |
| Product Code | LM936AXLS002B |
| Rim Type | Hookless / Straight-Sidewall |
| Warranty Period | 1 Year |
| Details | |
| Wheelset Weight | 1460g (680g front + 780g rear) |
| Rims | LM936AX Carbon Fiber, UD Matte 28/28H, 36mm External, 30mm Internal, Asymmetric |
| Hubs LBW | LBW LS002B 15x110 front 12x148mm rear, 28/28H, Straight-Pull, 6-Bolt, Ratchet 36T, Black |
| Spokes | Plain (Black, Bladed) / Pillar Aero PA 1423 (Black) / Pillar Aero PSR X-Tra 1420 (Black) |
| Nipples | Alloy (Black) |
| ERD (Effective Rim Diameter) | 590mm |
| Spoke Holes Diameter | 4.5mm |
| Valve Hole Diameter | 6.5mm (Presta) |
| Hub Body | Shimano 9-11S / Sram XD / Micro Spline 12S |
| Tubeless Compatible | Yes |
| Includings | Complete Wheelset + Spare Spoke + Spare Nipple |
| Recommendation | |
| Spoke Tension | 90 ~ 120Kgf ( ≤130Kgf ) |
| Tire Size | 2.0" ~ 2.55" |
| Tire Pressure | ≤65psi |
| Carrying Capacity (One Wheel) | 100Kg |
| Application | |
| Application | XC / Marathon |
LM936AXLS002B Carbon MTB XC Wheelset | 29" 36mm 110/148mm
- Product Code: LM936AXLS002B
-
USD 519
-
- 5 or more USD 339
- 10 or more USD 329
- 20 or more USD 309
