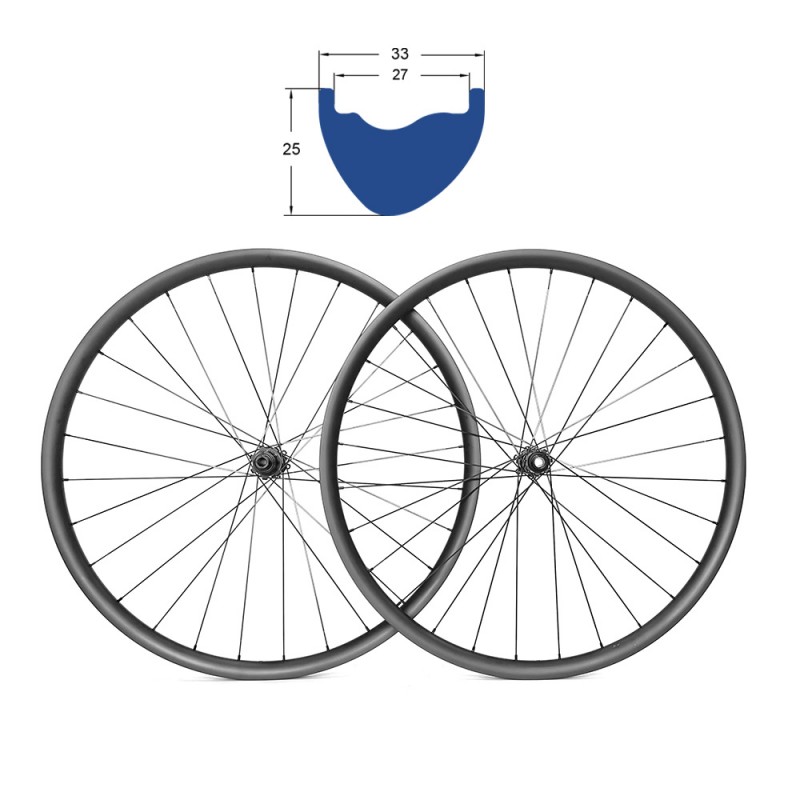

LBW aims to provide entry-level carbon fiber bicycle products with low price and quality assurance. This carbon fiber mountain wheelset LM933AXLS002B is only 1440g for cross country riding, equipped with LM933AX rims and our own brand hubs of model LS002B in size boost 15x110/12x148mm. It is equipped with Plain Gauge bladed spokes originally, but you could also upgrade the spokes to Pillar PA 1423 aero spokes or Pillar PSR X-Tra 1420 spokes.
More information about the carbon rims on this wheelset: LM930X
More information about the hubs on this wheelset: LS002B
| Basic | |
| Product Code | LM933AXLS002B |
| Rim Type | Hookless / Straight-Sidewall |
| Warranty Period | 1 Year |
| Details | |
| Wheelset Weight | 1440g (670g front + 770g rear) |
| Rims | LM933AX Carbon Fiber, UD Matte 28/28H, 33mm External, 27mm Internal, Asymmetric |
| Hubs LBW | LBW LS002B 15x110 front 12x148mm rear, 28/28H, Straight-Pull, 6-Bolt, Ratchet 36T, Black |
| Spokes | Plain (Black, Bladed) / Pillar Aero PA 1423 (Black) / Pillar Aero PSR X-Tra 1420 (Black) |
| Nipples | Alloy (Black) |
| ERD (Effective Rim Diameter) | 590mm |
| Spoke Holes Diameter | 4.5mm |
| Valve Hole Diameter | 6.5mm (Presta) |
| Hub Body | Shimano 9-11S / Sram XD / Micro Spline 12S |
| Tubeless Compatible | Yes |
| Includings | Complete Wheelset + Spare Spoke + Spare Nipple |
| Recommendation | |
| Spoke Tension | 90 ~ 120Kgf ( ≤130Kgf ) |
| Tire Size | 1.75" ~ 2.25" |
| Tire Pressure | ≤65psi |
| Carrying Capacity (One Wheel) | 100Kg |
| Application | |
| Application | XC / Marathon |
LM933AXLS002B Carbon MTB XC Wheelset | 29" 33mm 110/148mm
- Product Code: LM933AXLS002B
-
USD 509
-
- 5 or more USD 335
- 10 or more USD 325
- 20 or more USD 305
