• [LM940] 29" 40mm MTB Carbon Rim

The LM940 carbon fiber rim is a model of symmetric mountain bike rim in size 29" 40mm width, weight 425g, tubeless compatible. This product is made of full T700 carbon fibers.


This model of rim could be mounted tires at size around 2.25" ~ 3.0". It can be used for variety of cycling forms like XC (cross country), marathon, trail and AM (All Mountain). We could also reinforce this product with extra carbon fibers. The weight would be added 30g for each rim for Enduro cycling.

Basic
Product Code LM940
Material Full Carbon Fibers (Toray T700)
Type Clincher (Hookless)
Warranty Period 1 Year
Details

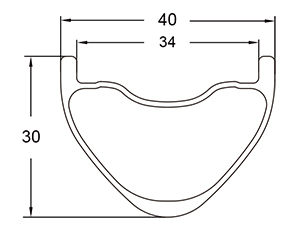

Size 29" (BSD 622mm)
External Width 40mm
Internal Width 34mm
Depth 30mm
Weight 425g / 455g
ERD (Effective Rim Diameter) 581mm
Spoke Holes Angle ± 5°
Spoke Holes Diameter 4.5mm
Spoke Holes Count 28 / 32
Valve Hole Diameter 6.5mm (Presta)
Tubeless Compatible Yes
Carbon Weave Availability UD / 3K / 12K
Recommendation
Spoke Tension 100 ~ 120Kgf ( ≤130Kgf )
Tire Size 2.25" ~ 3.0"
Tire Pressure ≤55psi
Carrying Capacity (One Wheel) 130Kg
Application
Application Cross Country (XC) / Marathon / Trail / All Mountain (AM) / Enduro

Write a review

Note: HTML is not translated!
    Bad           Good

[LM940] 29" 40mm MTB Carbon Rim

  • Product Code: LM940
  • Availability: In Stock
  • $170.00


  • 2 or more $161.00
  • 10 or more $136.00
  • 20 or more $119.00
  • 40 or more $110.00

Available Options


Tags: MTB Carbon Rim
