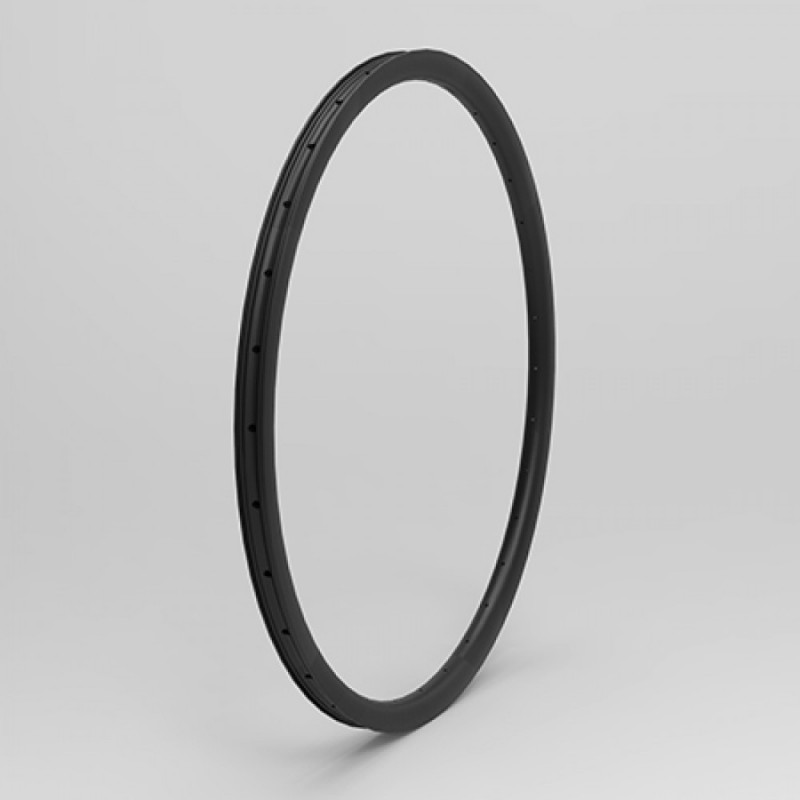

The LB29AM30 carbon fiber rim is a model of symmetric mountain bike rim in size 29" 30mm width, weight 390g, tubeless compatible. This product is made of full carbon fibers.
This model of rim could be mounted tires at size around 1.75"~2.1". It can be used for variety of cycling forms like xc, marathon, trail and AM (All Mountain).
| Basic | |
| Product Code | LB29RM30 |
| Material | Full Carbon Fibers |
| Type | Clincher (Hookless) |
| Warranty Period | 1 Year |
| Details | |
| Size | 29" (BSD 622mm) |
| External Width | 30mm |
| Internal Width | 23.4mm |
| Depth | 30mm |
| Weight | 390g (AM) / 420g (Enduro) |
| ERD (Effective Rim Diameter) | 581mm |
| Spoke Holes Angle | ± 6° |
| Spoke Holes Diameter | 4.5mm |
| Spoke Holes Count | 28 / 32 |
| Valve Hole Diameter | 6.5mm (Presta) |
| Tubeless Compatible | Yes |
| Carbon Weave Availability | UD / 3K / 12K |
| Recommendation | |
| Spoke Tension | 80~130kgf |
| Tire Size | 1.75" ~ 2.1" |
| Tire Pressure | 30 ~ 60psi |
| Carrying Capacity (One Wheel) | 110Kg |
| Application | |
| Application | XC / Marathon / Trail / AM / Enduro |
[LB29RM30] 29" 30mm MTB Carbon Rim
- Product Code: LB29RM30
-
USD 170
Available Options
Tags: MTB Carbon Rim
